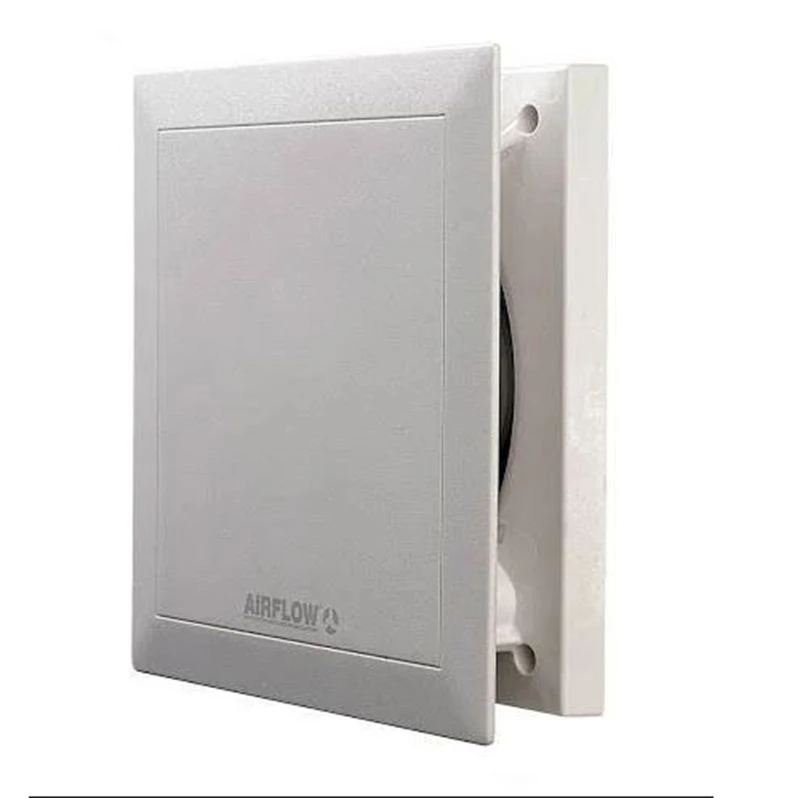

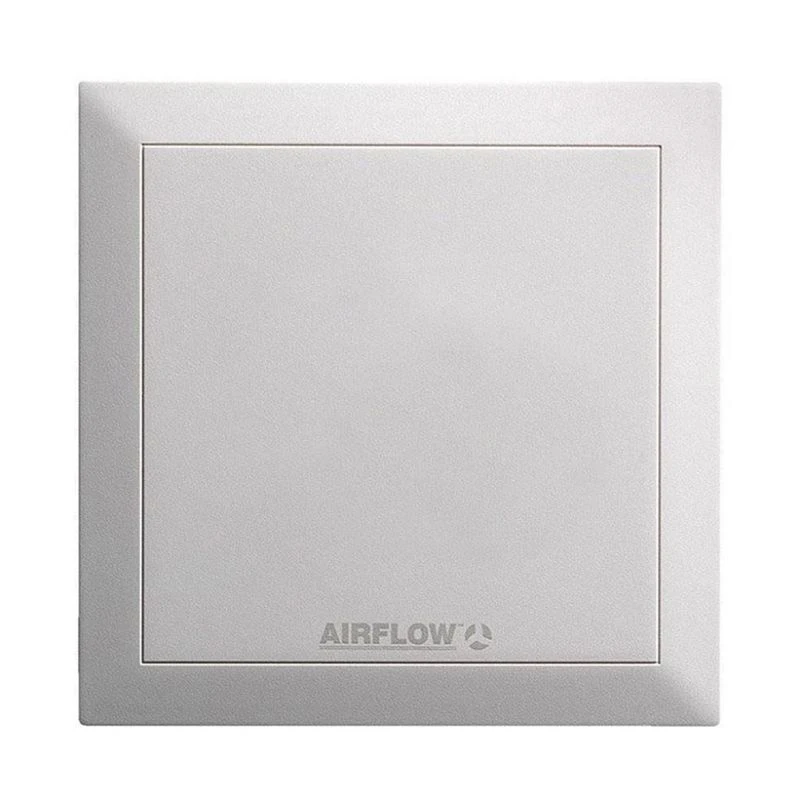

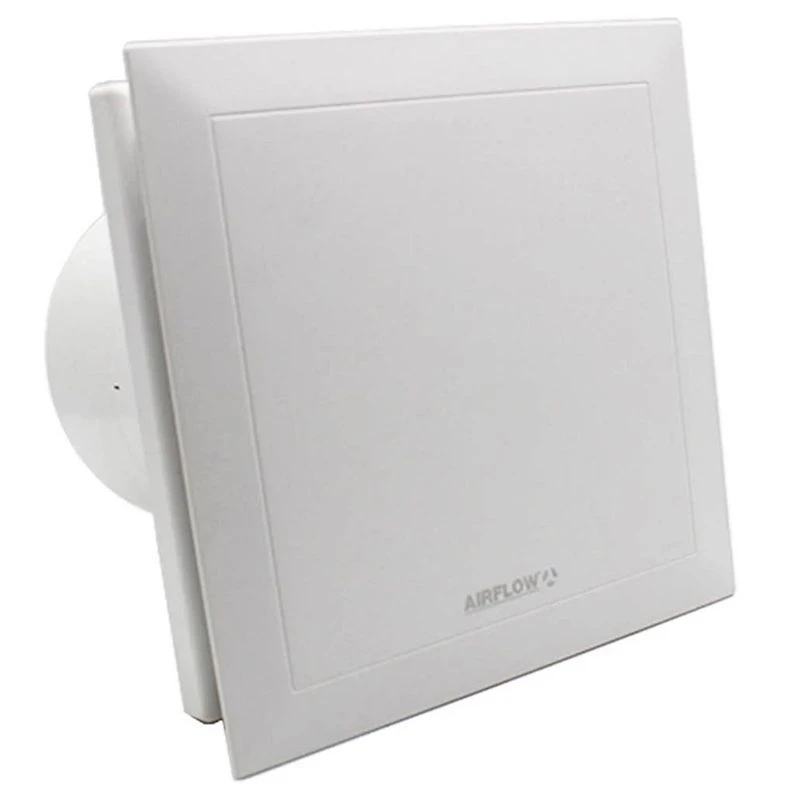

Airflow QuietAir QT100HT Extractor Fan with Humidity Timer – 9041261 Details
The QuietAir QT100HT Extractor Fan is part of a range of elegant, discreet axial fans that are extremely quiet with various control options that activate the fan only when needed. It also has a delay start function, adjustable up to 2 minutes. This is ensures the extractor fan does not come on when somebody uses the toilet for a short period of time. This contributes to the fan being extremely economical to run. By using exceptionally low energy this helps to reduce carbon missions and save on energy bills. It has a high efficiency impeller for extraction through up to 10 metres of rigid ducting and still able to comply with the Building Regulations.
Features
- Awarded QuietMark 2014 by Noise Abatement Society
- Extremely quiet from 25 dB(A)
- Delay start for two minutes avoids unnecessary use (especially at night), and saves energy
- Power consumption from only 5 watts
- Longlife ball-bearing motor with 40,000 hours life
- Two speed options, 75 m3/hr and 90 m3/hr
- Adjustable overrun timer
- High efficiency impeller delivers up to 60m3/hr through 12m of rigid ducting, including 90 degree bends
- Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations
- Integral flow straightener and back draught flap
- Low specific fan power for SAP assessments
- Clip-on cover for ease of cleaning
- Innovative room refresh option (interval timer) programmable for automatic long term routine ventilation
- Complies with latest Building Regulations Approved Document F
- Airflow 75/90 m3/hr, 20.8/25 l/sec
- Airflow 31Pa @ 60 m3/hr, 16.6 l/sec
- Axial high efficiency impeller
- Wall/ceiling mounting
- Sound pressure 25/30 dB(A) @ 3m
- Adjustable timer (muinutes) 6, 10, 15, 21
- Power 5/9 watts
- SFP 0.24 w/l/s
- Voltage – 230/1/50-60Hz
- Rating IP45
- Max. ambient temperature 40 degree
- Interval times, auto start (hours) 0, 8, 12, 24
